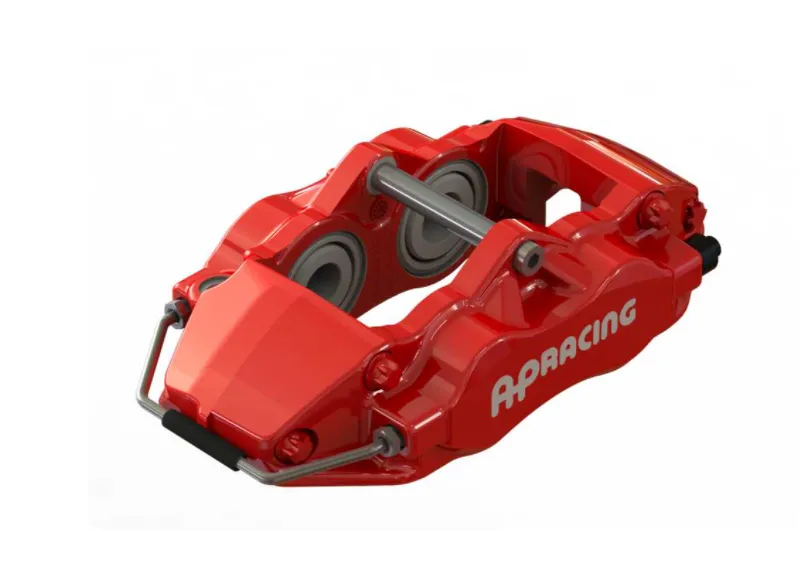

CP9200 - Forged Front - 152mm Mounting Ctrs

Applications:
- Front.
- Factory Big Brake Kit.

Features:
- Radial Mount, 152mm centres.
- Suits Ø330 x 28mm Max / 26mm Min Disc.
- Forged two piece Aluminium alloy body. - Designed to replace CP5200 caliper.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Pad anti-rattle clip fitted.

IMPORTANT NOTE: CP9200 replaces CP5200 family BUT IS NOT A DIRECT REPLACEMENT DIMENSIONALLY Whilst mounting hole centres, offset and PL dimensions are the same as CP5200-806/7/8/9S4 variant, there are differences in the radial profiles dimensions and pad location - please check installation before purchasing. When replacing CP5200 calipers with CP9200 in brake kits please contact AP Racing technical for guidance.

Black Caliper Part Numbers:
- RHT = CP9200-2S0BG / - LHT = CP9200-3S0BG.
- RHL = CP9200-4S0BG / - LHL = CP9200-250BG.

Red Caliper Part Numbers:
For Red calipers add 'R2' to end of Part Number e.g.
CP9200-2S0R2

Brake Pad Information

- Pad Area = 57.4cm²
- Pad Depth = 50.3mm
- Thickness = 16.8mm

TECHNICAL SPECIFICATIONS
Piston Sizes - mm
Ø38.1 x 2
Ø41.3 x 2

Disc Diameter - mm Ø330

Disc Thickness - mm
- Max = 28
- Min = 26

Weight (no pads) - Kg 2.43
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres - mm 152
Mounting Offset - mm 46.86
Mounting Hole Ø - mm 10.1 Nom
‘PL’ Dimension - mm 60.36
Bleed Screw Tightening Torque 17Nm

SPARE PARTS
Pistons
- Ø38.1 = CP9200-108
- Ø41.3 = CP9200-109

Seal Repair Kit CP4527-JK
Pad Retainer Type / Part No
Bolt - CP5200-124

Pad Retainer Cap Head Bolt Part No
CP3596-112ST

Bleed Screw CP4970-125
Pad Anti-Rattle Clip CP5200-151
