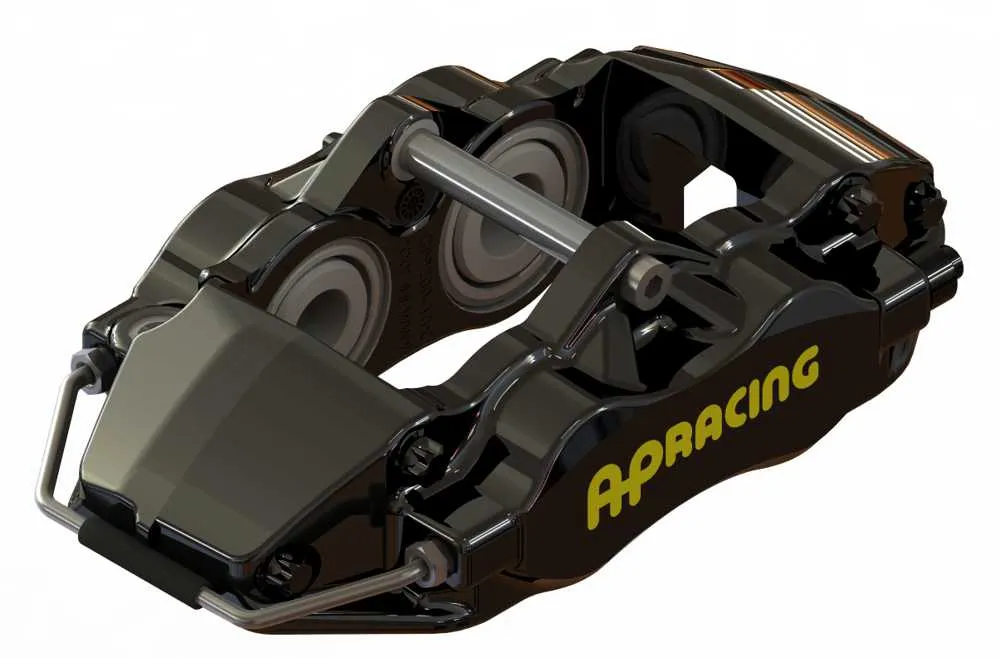

Product Details
＋
Applications:
- Front.
- Factory Big Brake Kit.
Features:
- Radial Mount, 152mm centres.
- Suits Ø330 x 28mm Max / 26mm Min Disc.
- Forged two piece Aluminium alloy body.
- Front.
- Factory Big Brake Kit.
Features:
- Radial Mount, 152mm centres.
- Suits Ø330 x 28mm Max / 26mm Min Disc.
- Forged two piece Aluminium alloy body.
- Designed to replace CP5200 caliper.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
IMPORTANT NOTE: CP9200 replaces CP5200 family.
Black Caliper Part Numbers:
- RHT = CP9200-2S0BG / - LHT = CP9200-3S0BG.
- RHL = CP9200-4S0BG / - LHL = CP9200-250BG.
Red Caliper Part Numbers:
For Red calipers add 'R2' to end of Part Number e.g.
CP9200-2S0R2
Black Caliper Part Numbers:
- RHT = CP9200-2S0BG / - LHT = CP9200-3S0BG.
- RHL = CP9200-4S0BG / - LHL = CP9200-250BG.
Red Caliper Part Numbers:
For Red calipers add 'R2' to end of Part Number e.g.
CP9200-2S0R2
| Brake Pad Information (To view larger image of pad click on Pad Part No) |
- Pad Area = 57.4cm² - Pad Depth = 50.3mm - Thickness = 16.8mm |
| TECHNICAL SPECIFICATIONS | |
| Piston Sizes - mm | Ø38.1 x 2 Ø41.3 x 2 |
| Disc Diameter - mm | Ø330 |
| Disc Thickness - mm | - Max = 28 - Min = 26 |
| Weight (no pads) - Kg | 2.43 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 152 |
| Mounting Offset - mm | 46.86 |
| Mounting Hole Ø - mm | 10.1 Nom |
| ‘PL’ Dimension - mm | 60.36 |
| Bleed Screw Tightening Torque | 17Nm |
| SPARE PARTS | |
| Pistons | - Ø38.1 = CP9200-108 - Ø41.3 = CP109 |
| Seal Repair Kit | CP4527-JK |
| Pad Retainer Type / Part No | Bolt - CP5200-104 |
| Pad Retainer Bolt Part No | CP3596-112ST |
| Bleed Screw | CP4970-125 |
| Fluid Pipes | CP9200-10 |
| Pad Anti-Rattle Clip | CP5200-151 |
