Name: Emergency V16 Diesel Generator
SKU: 691676

Product Details ＋

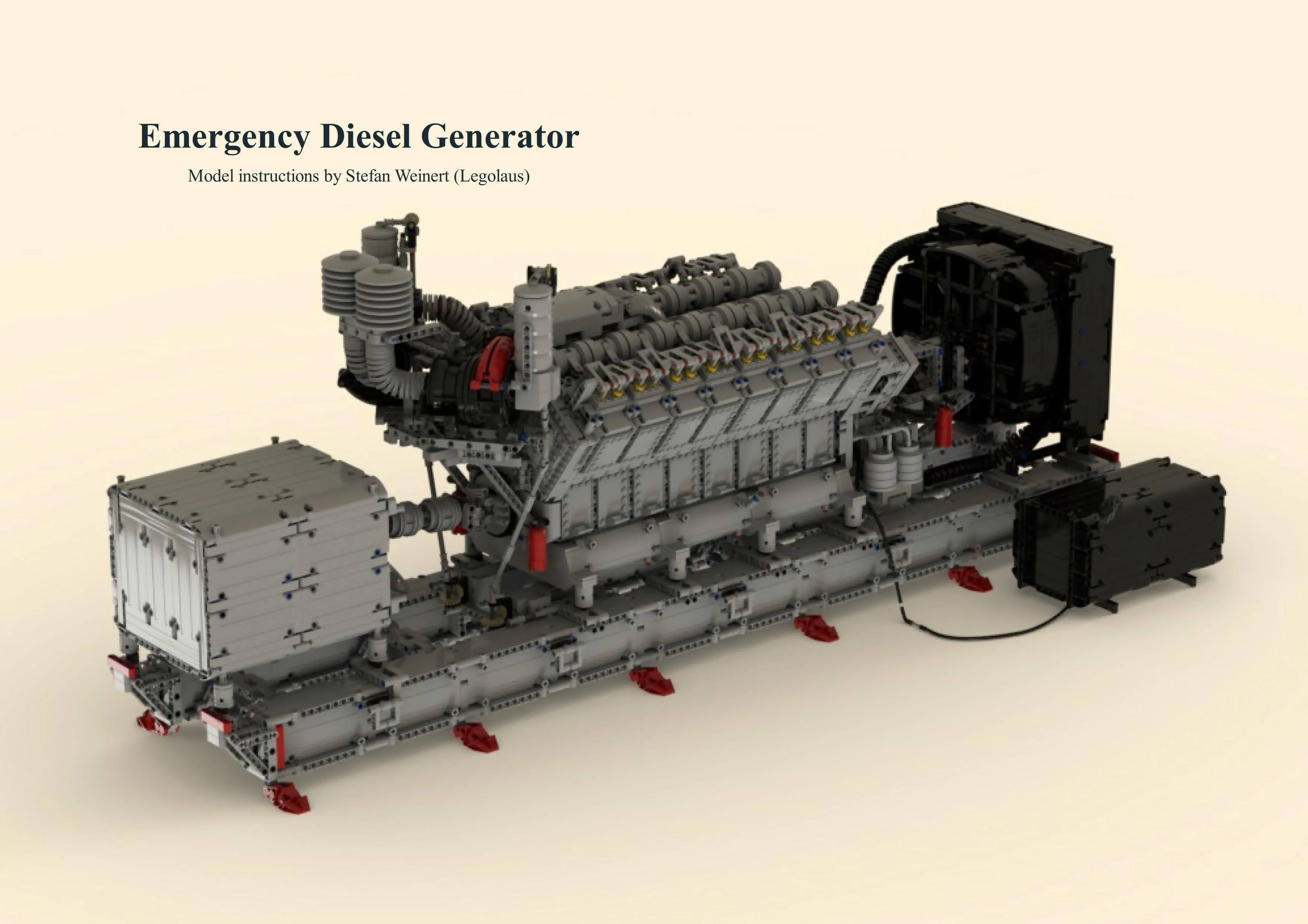

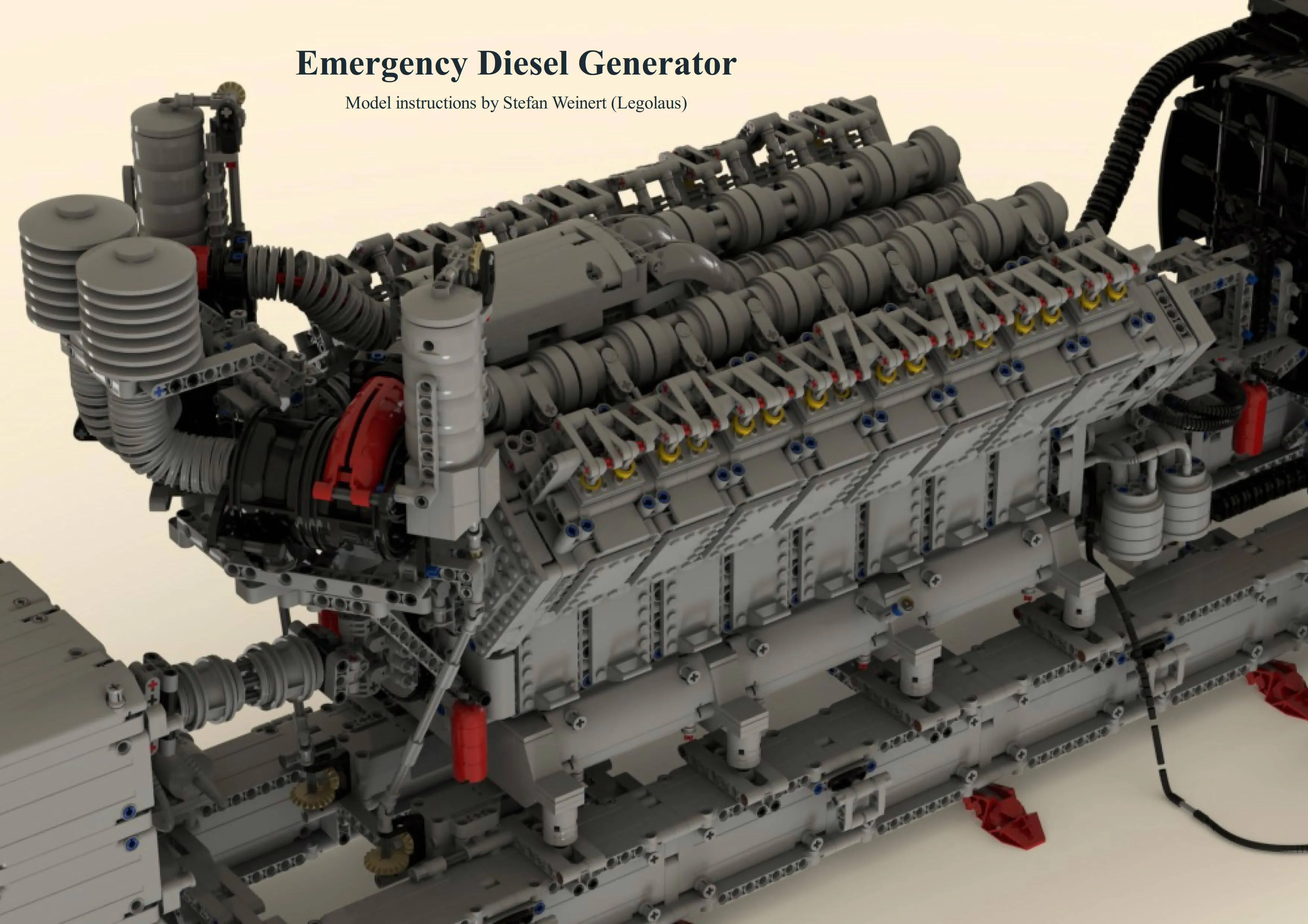

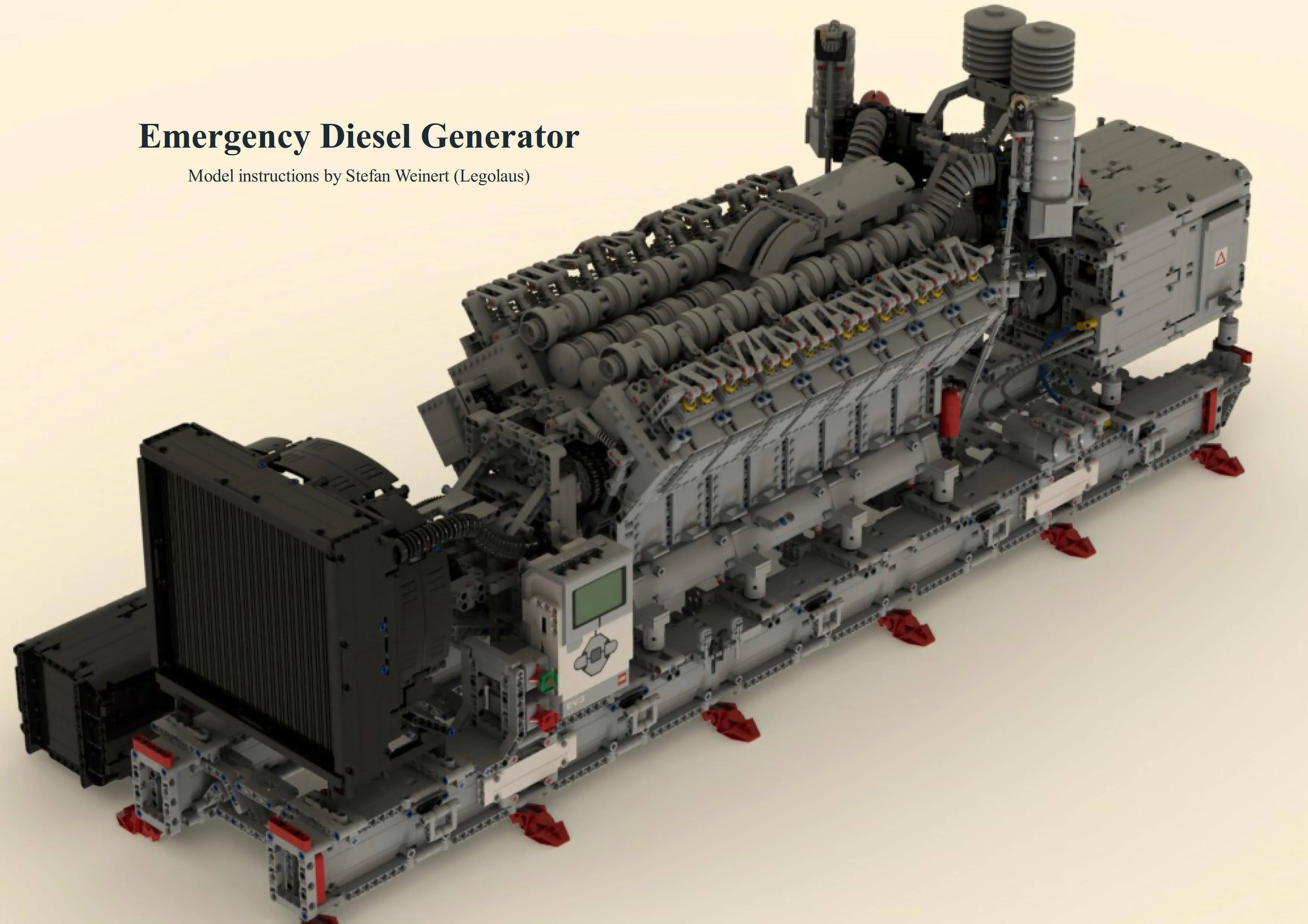

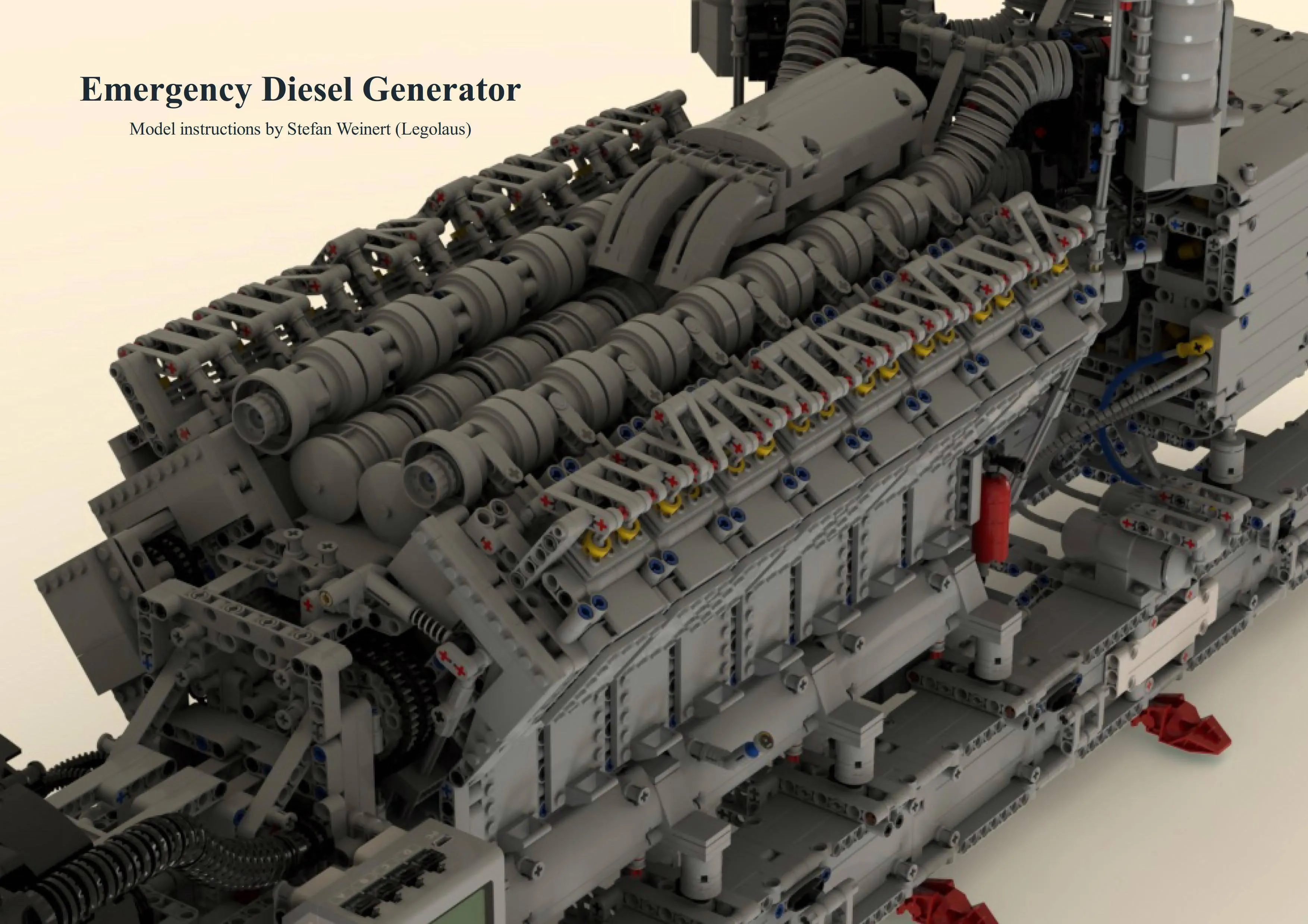

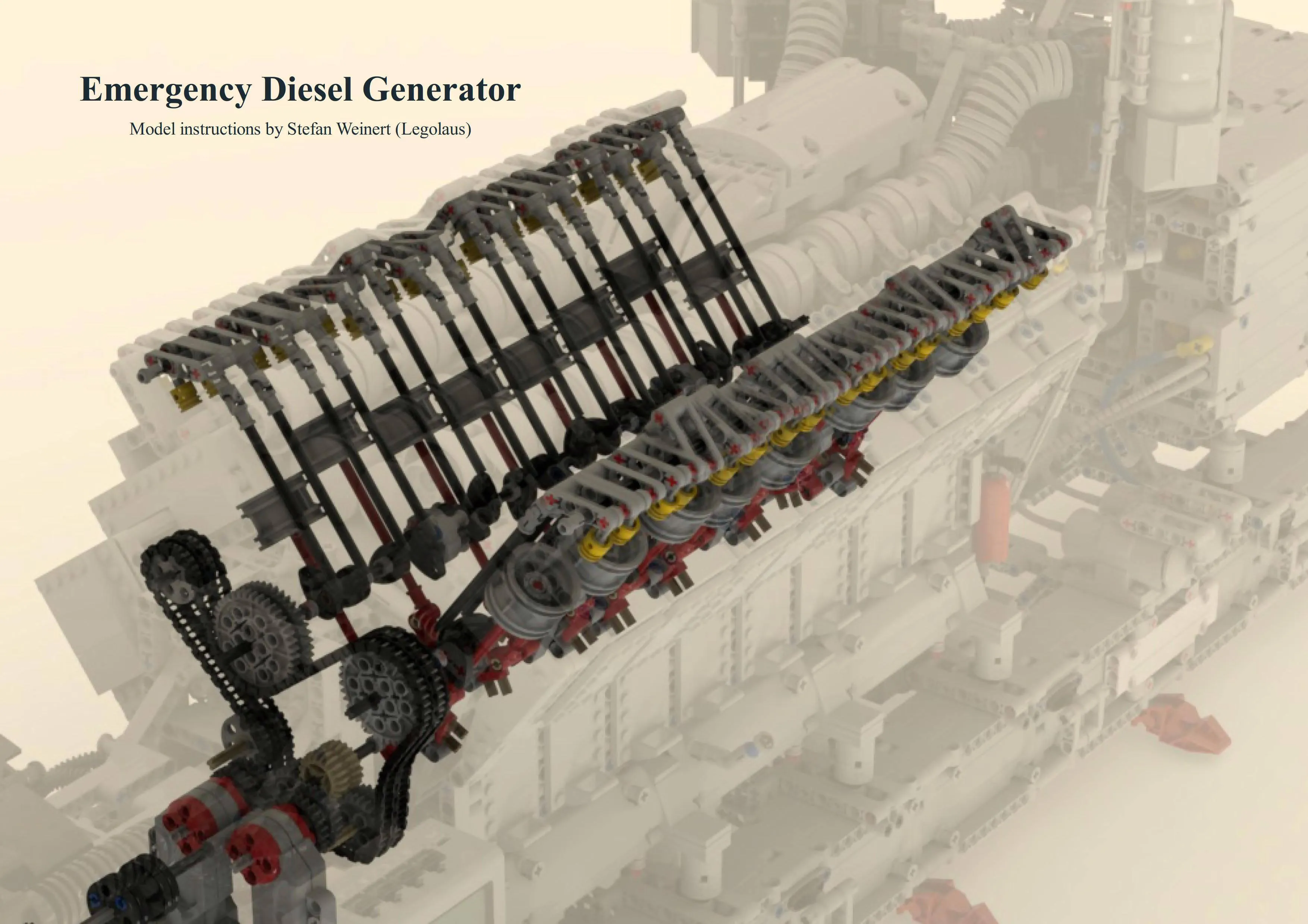

V16 Engine with working Pistons (Mack Rims), Crankshaft, two Camshafts, Valve Control via Chains and speed dependend controlled Exhaust Flaps
Dimensions: Length: 102,4cm; Width: 28,5cm; Height: 41cm; Weight: 7,72kg

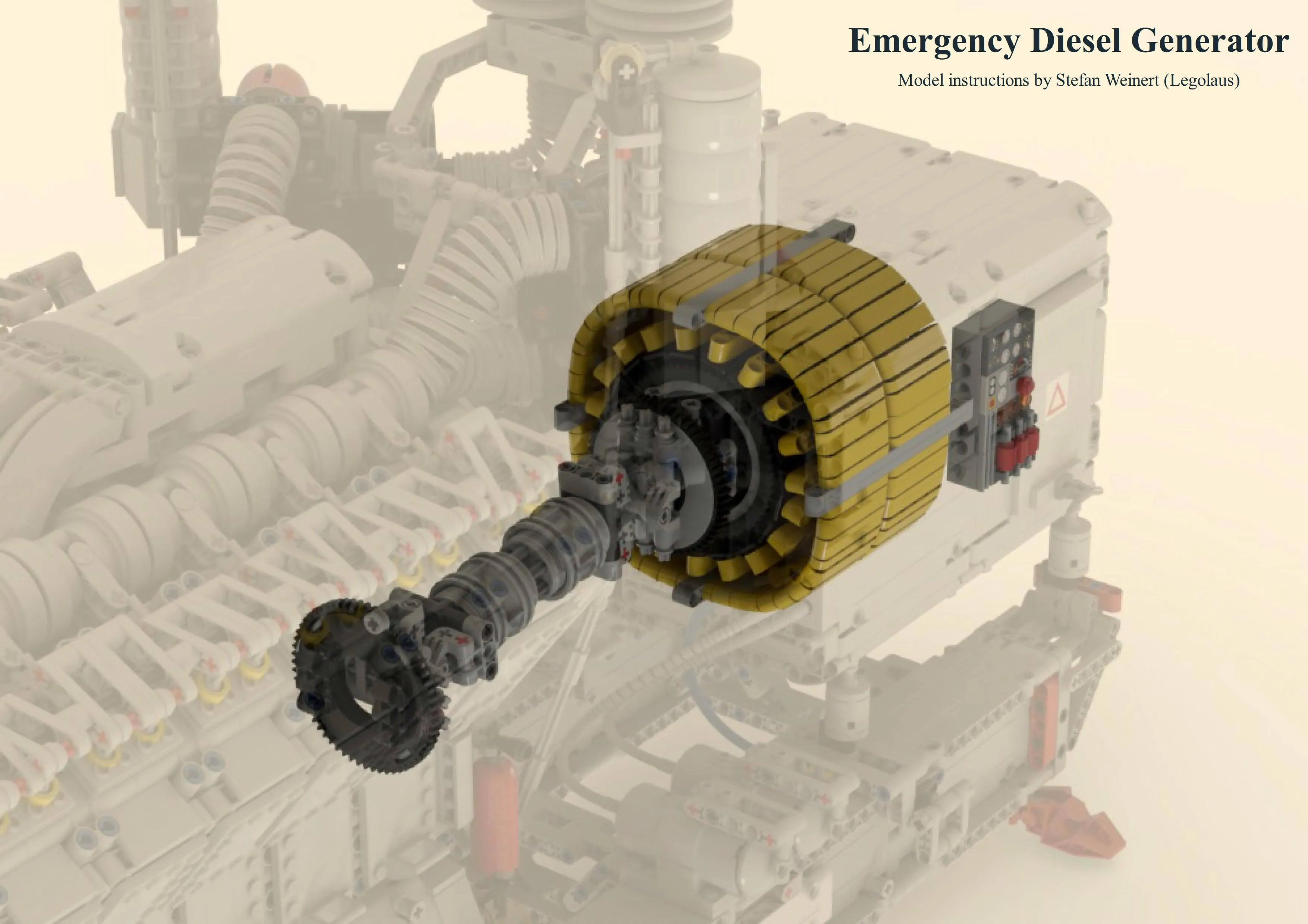

Generator House with Rotor, Stator, big Cardan and Maintenance Hatch with Controls

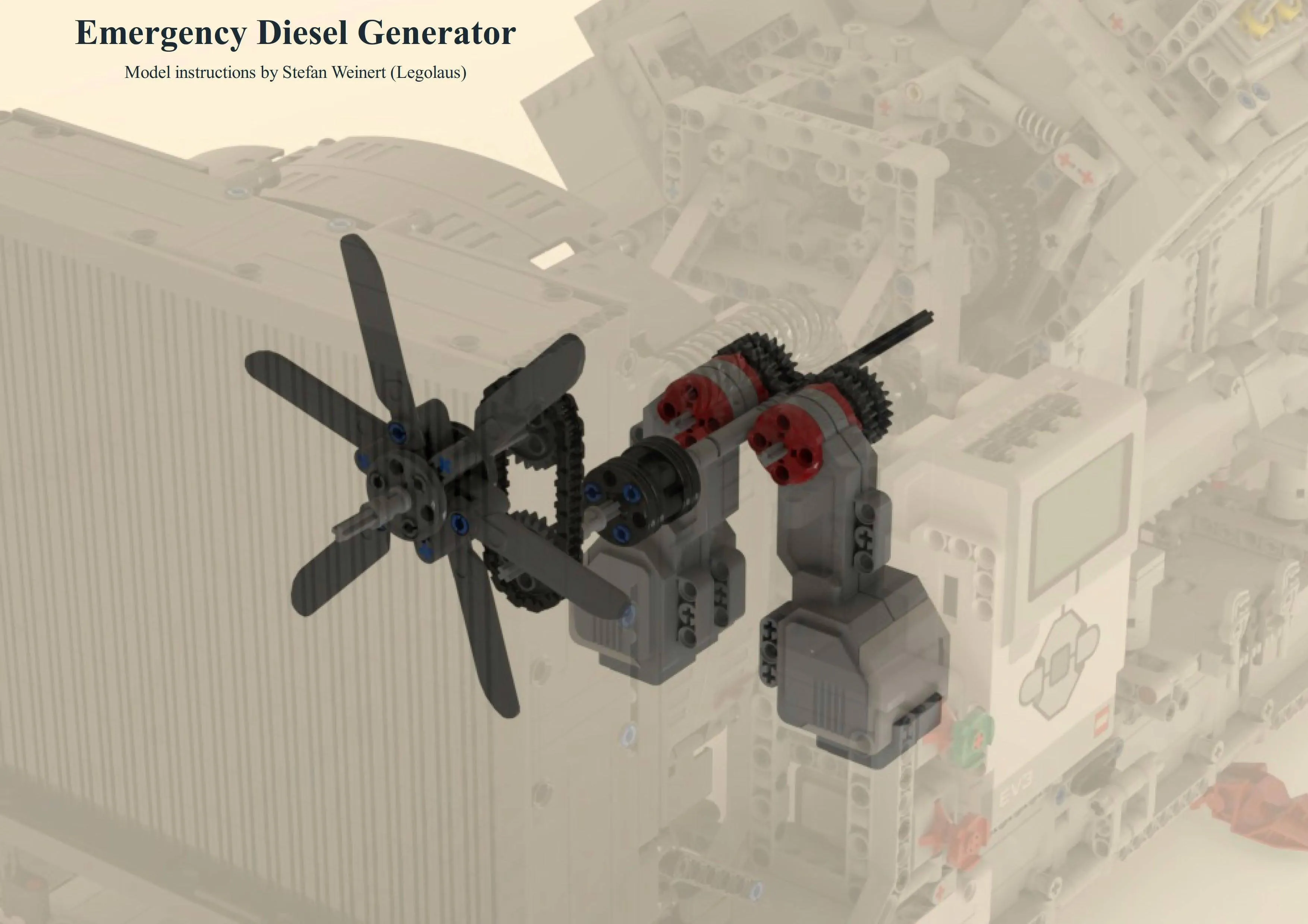

Cooler with working Fan Wheel and Hardy Coupling
Two big Mindstorms Motors for Drive

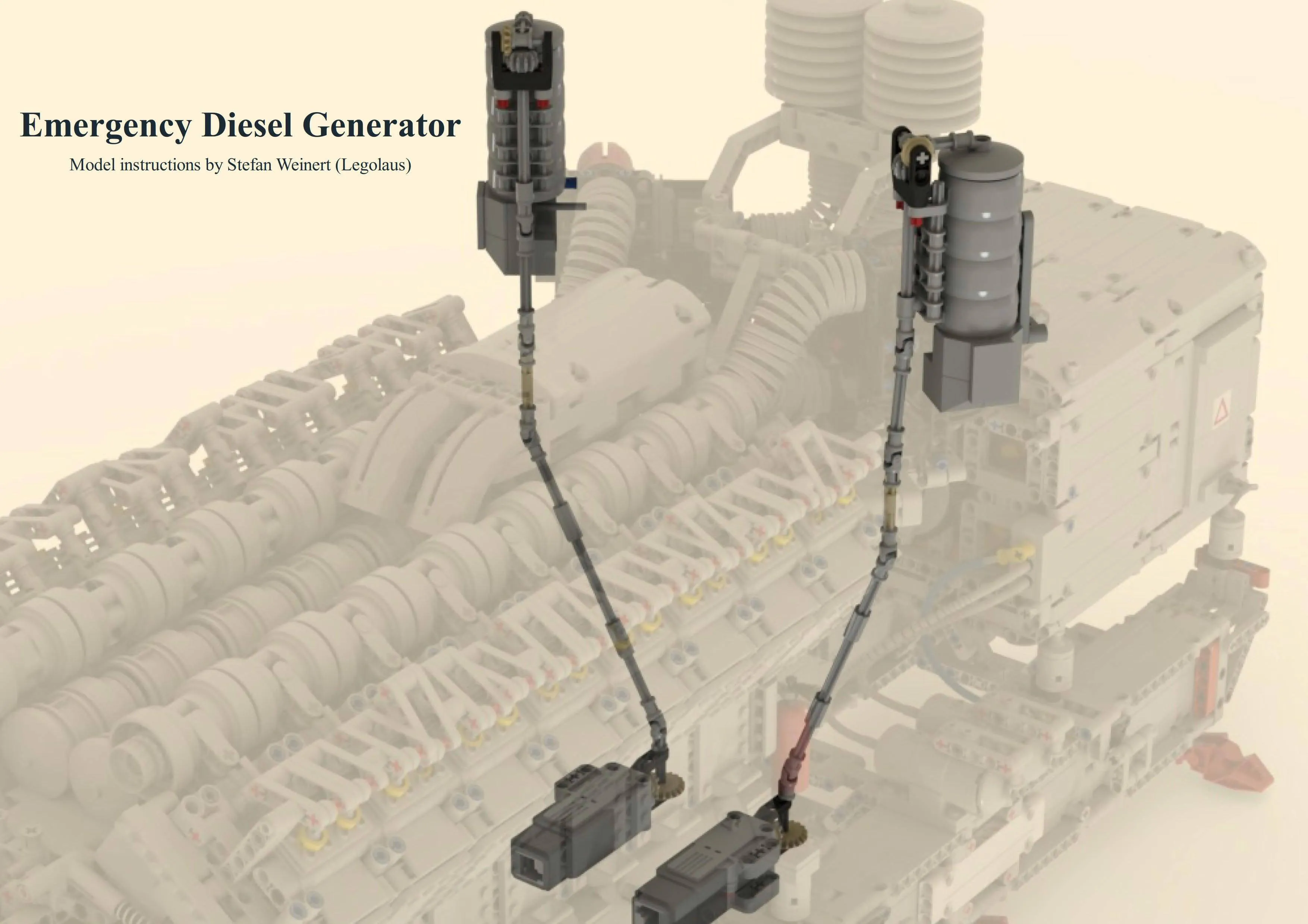

Two small Mindstorms Motors for Control Exhaust Flaps
Two external Pushbuttons for Start/Stop
Control of the Drive Motors in the variable Power Range of 30% (Idle) to 95% (Maximum Speed) (via Mindstorms EV3 Pushbuttons)
Control the Exhaust Flaps depending on the Speed (via Mindstorms EV3)
Start-Sequence with Starter-Noise ("difficult" Start-Up) (Sound-File from EV3)
Stop-Sequence (Speed is slowly reduced)
Display for Power an Current Speed (rpm)
Sound depending on the Speed (via Mindstorms EV3) and itself
Motor, Cooler and Generator House mounted on Rubber Buffers (for Damping)
It´s most similar to the Caterpillar CAT3616
Some Experience and Tools (Tweezers, Pliers for tight Spaces) are required for Assembly
A Traverse for Carry the Model will follow soon. It was already been build and successfully tested on a Crane
Attention: This Model does not generate any Electricity, it is a purely functional Model, it should simulate the essential Parts of the Motor
Scale 1:10 (estimated)
