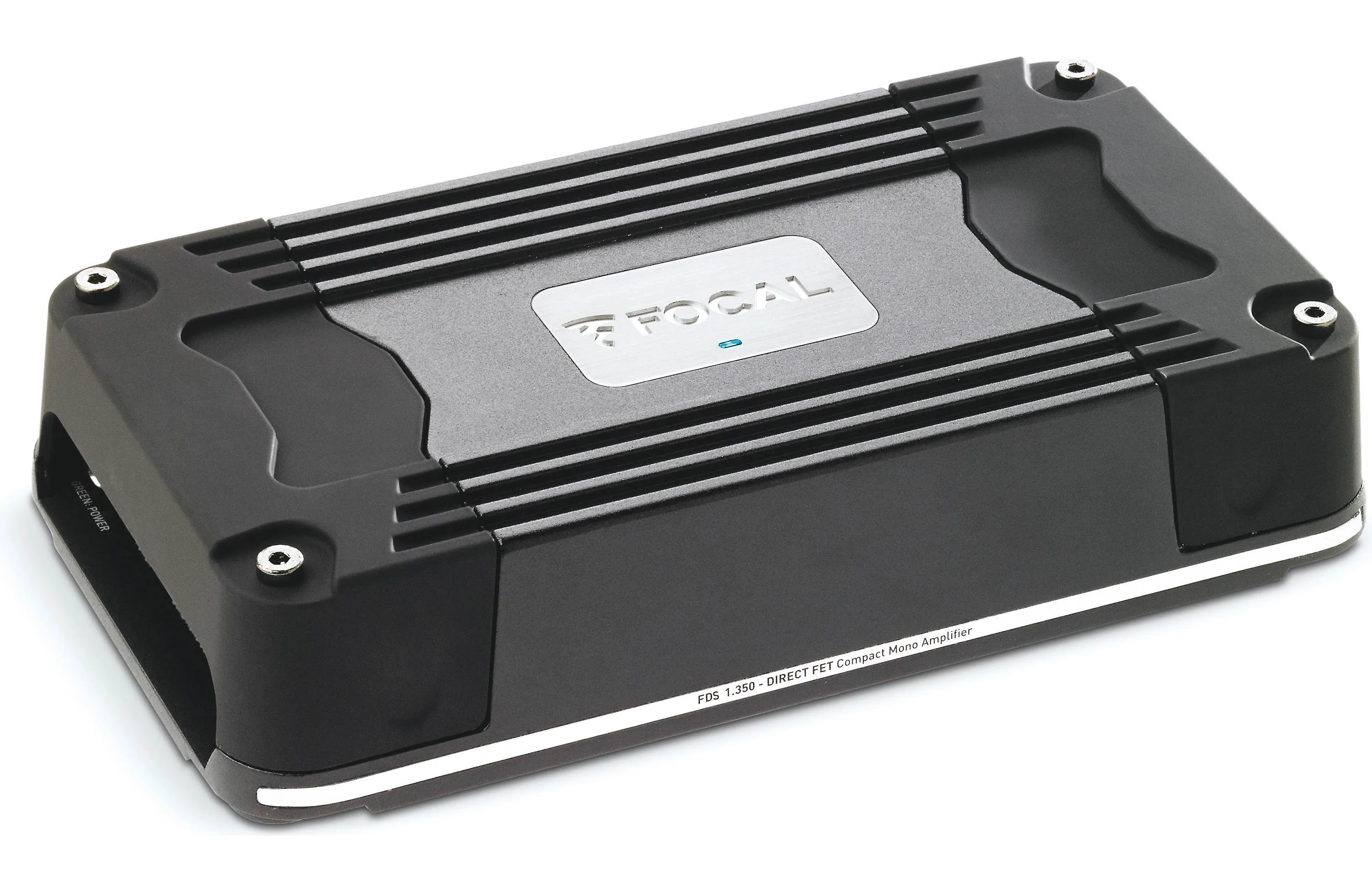

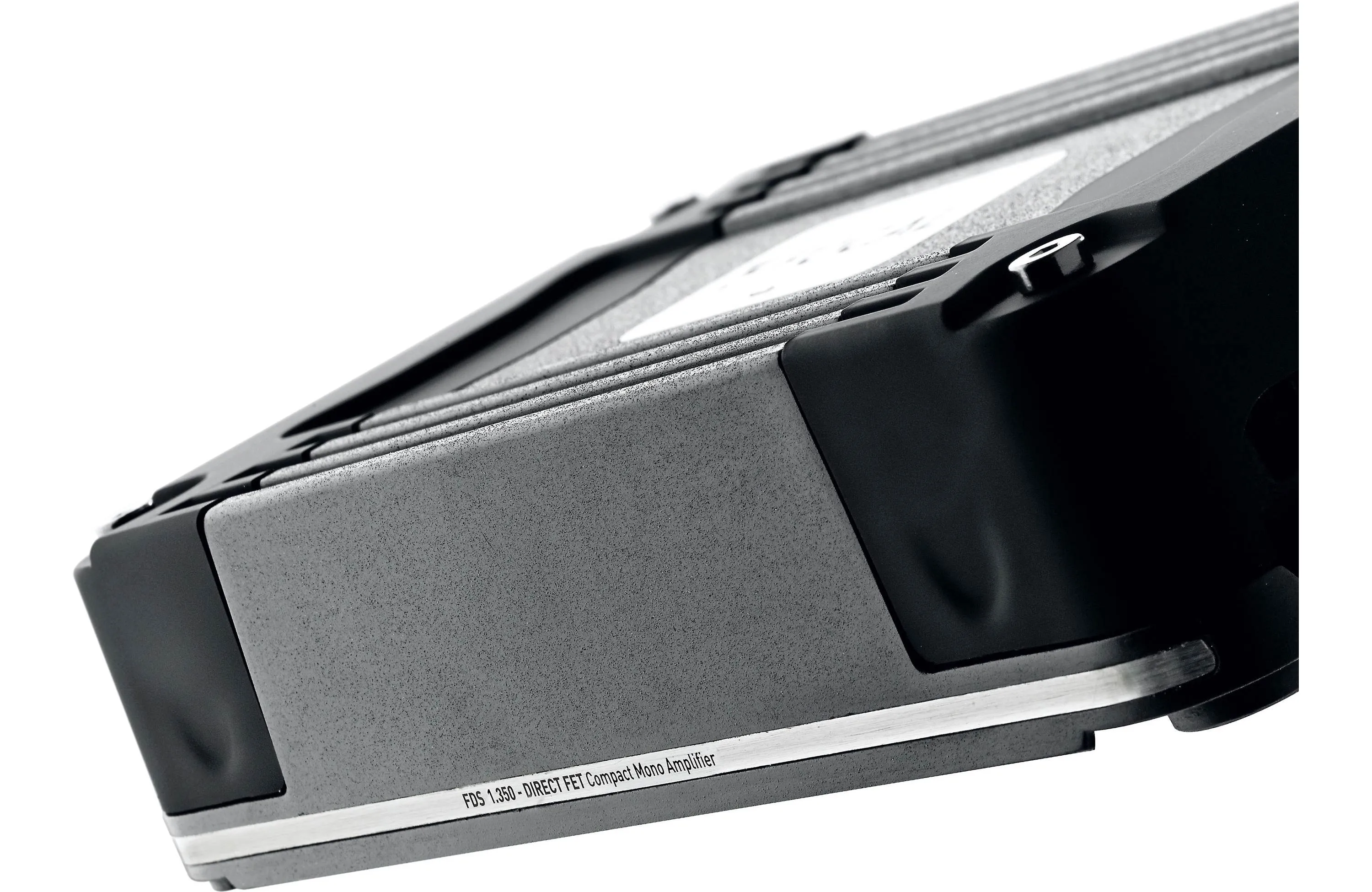

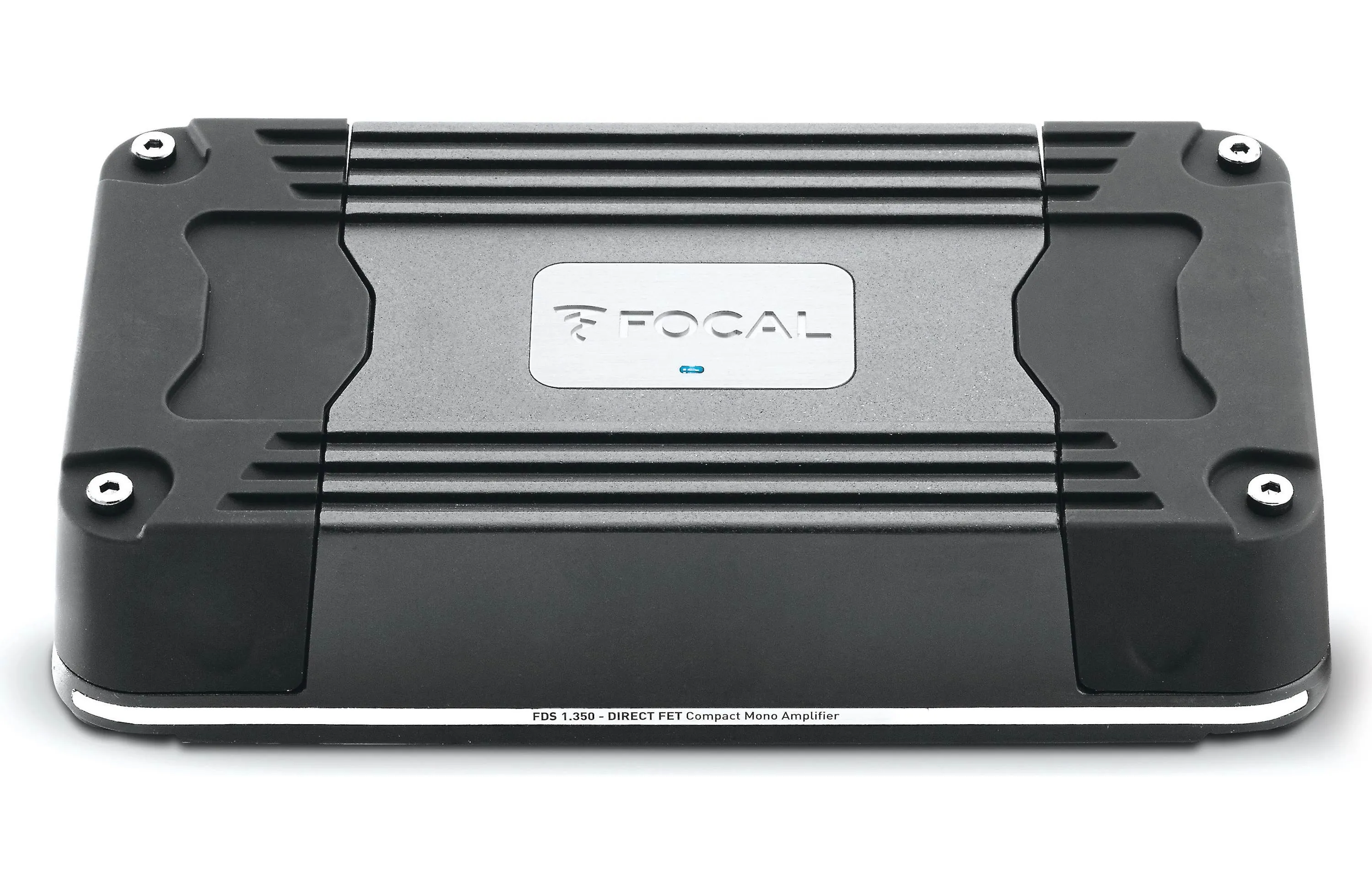

Focal FDS 1.350 Performance Ultra Compact Mono Amplifier

ULTRA-COMPACT MONO AMPLIFIER

The FDS 1.350 is a mono block amplifier specifically designed for handling a subwoofer channel. It has a power of 210 and 350 Watts RMS under 4 and 2 Ohms respectively. In order to configure the system s bass according to the car s installation; it is equipped with an active crossover, bass correction and phase adjustment.

Mono D Class amplifier with dual output
RCA low-level inputs
Compact

KEY POINTS
D Class Direct Fet Technology - Efficient heat dissipation and precision
Stable under 2 Ohms
Stackable aluminium chassis with high heat dissipation
Low noise operational amplifiers New Japan Radio NJM4580
Low ESR capacitors - 105 C (220 F)
Pseudo-balanced inputs

Specs

Mono D Class amplifier with dual output
CEA power (4 Ohms): 1x210 Watts RMS
Power max (2 Ohms): 1x350 Watts RMS
Low-pass crossover: 40Hz-400Hz
Progressive phase adjustment (0-180 )
Bass boost (0/6dB/12dB)
Protections: Short circuit / low impedance / Polarity reversal / DC / power drop / heat protection
Dimensions (LxHxW):713/16x41/4x111/16 (199x108x43mm)
Weight: 1.9 lbs
