ZEAGLE CODE 3 FOR RAPID EMERGENCY RESPONSE

ZEAGLE CODE 3 FOR RAPID EMERGENCY RESPONSE

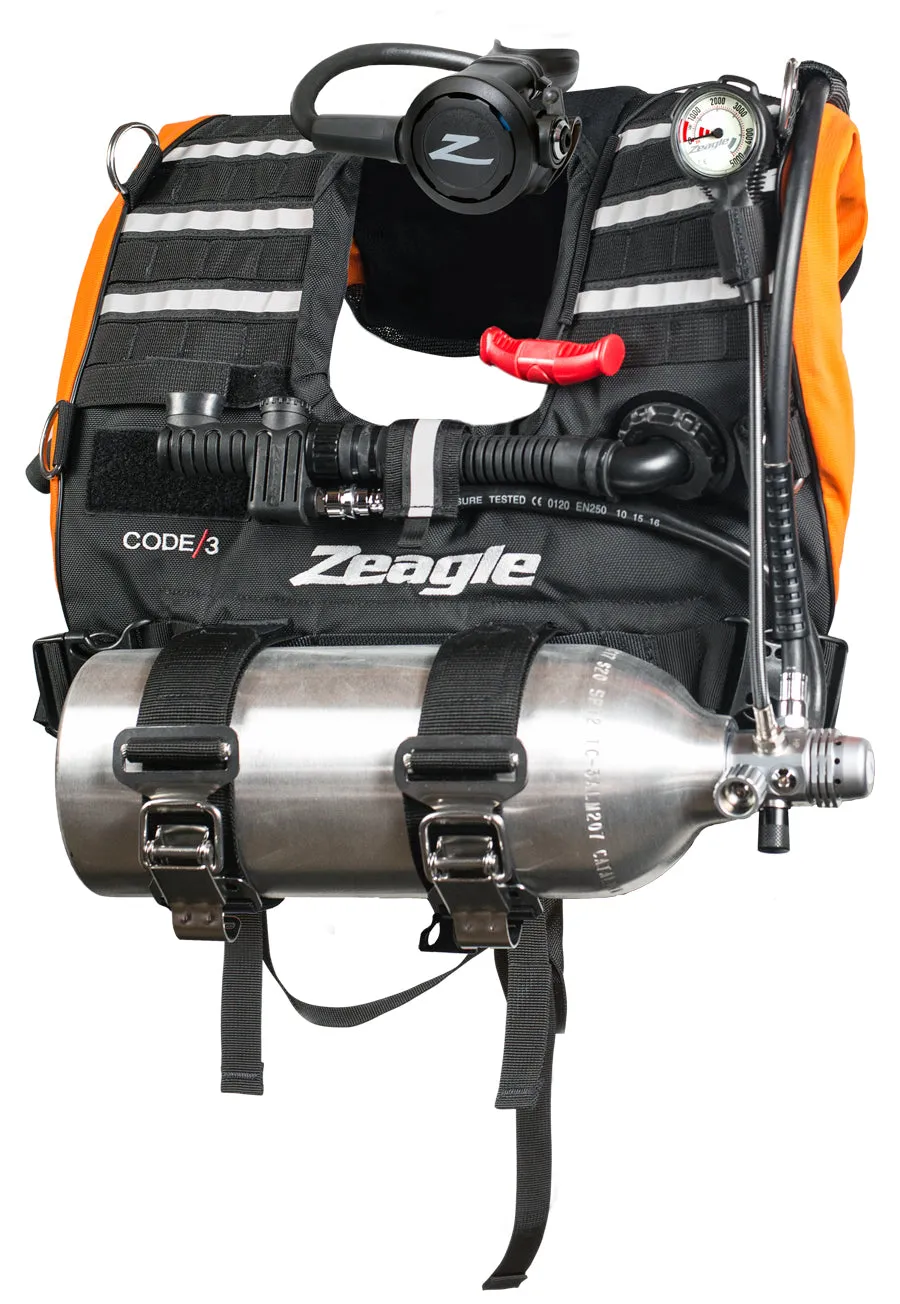

U.S. Water Rescue presents the Zeagle Code 3 Rapid Diver. Code 3 Rapid Diver is the next generation of BCDs for all military, coast guard, law enforcement, maritime, security, marine patrol and fire and rescue personnel. It’s a convenient diving system that’s designed specifically for rapid response to an emergency. Featuring an enhanced MOLLE strap system with additional strap areas for accessories; dual tank mounting bands that secure the tank vertically, horizontally, and large reinforced padding adds comfort. Reflective tape increases visibility and makes the diver easily identifiable.

• 2 Tank configurations (horizontal and vertical back mount)
• 20 cu ft Tank (Black or Silver depending on availability)

• Reflective Tape for easy identifying in all environments
• Additional MOLLE Strap areas for accessories
• Adjustable Waist and Crotch Strap
• Durable 1680D Ballistic Nylon
• 2 OPV Pull Dumps

• Razor II Regulator System

• 5000 psi Gauge with Hose
• USWR Approved

BCD SPECS:

• Dry Weight (BCD only): 7 lbs
• Lift Capacity: 28 lbs
• D Rings: 4 Stainless Steel

CYLINDER SPECS:

• 20 cu'
• 3000 psi
• Diameter: 5"
• Length w/o regulator:  14"
• Weight w/o regulator: 9 lbs

ENVOY II FIRST STAGE SPECS:

• An economical, yet top-performing regulator
• High Performance Porting
• Conical Precision HP valve
• Unbalanced Diaphragm
• Yoke or DIN inlet available
• 5 Low Pressure Ports (3/8”-24 UNF)
• 2 High Pressure Ports (7/16”-20 UNF)
• Weight 1.88 lbs (.89 kg)
• Intermediate Pressure: 135-150 psi (9-10 bar)

ENVOY II SECOND STAGE SPECS:

• Downstream valve
• Venturi lever gives you free-flowing control and helps deliver smooth, reliable breathing
• Unbalanced Diaphragm
• Weight: .42 lb. (.26 kg) (w/o hose
